EMI Design Kits/ SMT Design Folders

In order to assist the design engineer concerned with EMI suppression, King Core has designed 2 ferrite core sample kits for cables and 7 SMT chip bead/inductor sample folders for PCB on board application.

These kits and folders are designed to reflect the different mechanical and frequency requirements of wide range EMI suppression applications. Each kit or folder contains a sampling of suppression cores or chips for use in the original design phase or in situations where a retrofit proves necessary.



* Ferrite Core Design Kits





Split & Solid Ferrite for Round and Ribbon Cables
KCF,RC,FS ,FP SERIES
Solid Ferrite for Round Cables
T,RH SERIES

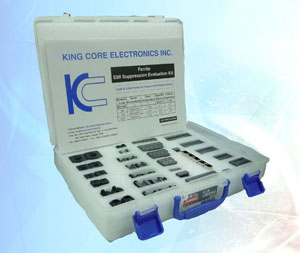

proimages/p5-2.jpg
KC001

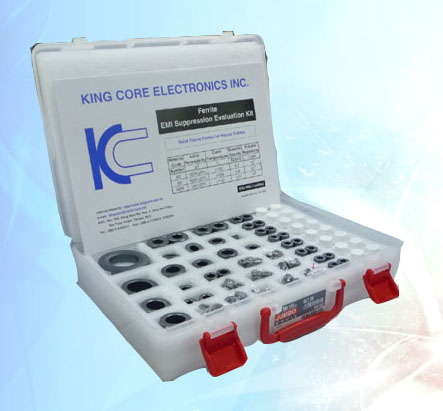

proimages/p5-1.jpg
KC002


With over 84 different part numbers for wide selection [KC-001; KC-002]



* SMT Chip Bead/Inductor Design Folders



Ferrite Chip Beads
FBMA 0603,0805,1206 SERIES
 Common Mode Choke WCM SERIES

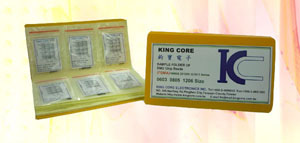

proimages/FBMA0603 0805 1206-1.jpg
KC005
proimages/FBMA0603 0805 1206-1.jpg
KC006
Multilayer ferrite chip bead for EMI suppression. Wire-wound common mode choke of EMI suppressor for high speed signal line.

Ferrite Chip Beads
FBMA-A HIGH CURRENT RATING SERIES
Wound Chip Inductor FLC201212
NLCL SERIES
proimages/FBMA0603 0805 1206-1.jpg
KC007
proimages/FBMA0603 0805 1206-1.jpg
KC009
Multilayer ferrite chip bead of EMI suppressor for DC power line . Wire-wound ferrite chip inductor for choke ,filter or resonance with higher IDCS .

Multilayer Ferrite Chip Inductor
FLMA 0603,0805,1206 SERIES
Ferrite Chip Beads
FBMA 0402 SERIES
proimages/FBMA0603 0805 1206-1.jpg
KC010
proimages/FBMA0603 0805 1206-1.jpg
KC011
Multilayer ferrite chip inductor for filter ,choke or resonance . Multilayer ferrite chip bead of EMI suppressor applied in small equipment .

Ceramic Chip Inductor
HLC 0603,0805 SERIES

proimages/FBMA0603 0805 1206-1.jpg
KC015

Wire-wound ceramic chip inductor for filter ,choke ,resonance with higher Q.
