BSFCDKC CRKC SERIES


SPECIFICATION OF BSF□□□□CDKC,CRKC SERIES

FEATURE
  1. High saturation current inductor with ferrite core and magnetic shielding design.
  2. Low profile : Surface mounting(SMT) type and thickness with 2.0 to 5.0 mm for different size.
  3. Low loss realized with low DCR.
  4. Halogen free, lead free, RoHS compliant.
APPLICATIONS
  1. D/D converter unit design for 3C products, VRM for server.
  2. DVD、HDD、STB、LCD display、IP CAM、 GPS、USB connector、Smart phones、Face Recognition System、IoT application...etc.
ORDERING CODE.
BSFCDKC CRKC SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE(CRKC with lower resistance and CDKC with high satuation current design)
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(K : ±10%, M : ±20%)
  4. REEL TAPING

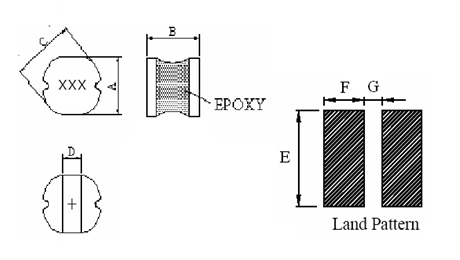

SHAPE & DIMENSIONS(mm)

BSFCDKC CRKC SERIES

UNIT : mm (inch)

SIZE CODEABCD
Typ.
EFGSeries Spec.
BSF0318CDKC3.0±0.31.9(max)3.5±0.31.23.51.60.8BSFCDKC CRKC SERIES
BSF0302CDKC3.0±0.32.3(max)3.5±0.31.23.51.60.8BSFCDKC CRKC SERIES
BSF0302CRKC3.0±0.32.3(max)3.5±0.31.23.51.60.8BSFCDKC CRKC SERIES
BSF0402CDKC4.0±0.32.2±0.34.5±0.31.54.52.10.8BSFCDKC CRKC SERIES
BSF0402CRKC4.0±0.32.2±0.34.5±0.31.54.52.10.8BSFCDKC CRKC SERIES
BSF0403CDKC4.0±0.33.2±0.34.5±0.31.54.52.10.8BSFCDKC CRKC SERIES
BSF0403CRKC4.0±0.33.2±0.34.5±0.31.54.52.10.8BSFCDKC CRKC SERIES
BSF0502CDKC5.2±0.32.5±0.35.8±0.325.52.251.5BSFCDKC CRKC SERIES
BSF0503CDKC5.2±0.33.0±0.35.8±0.325.52.251.5BSFCDKC CRKC SERIES
BSF0504CDKC5.2±0.34.5±0.35.8±0.325.52.251.5BSFCDKC CRKC SERIES
BSF0504CRKC5.2±0.34.5±0.35.8±0.325.52.251.5BSFCDKC CRKC SERIES
BSF0703CDKC7.0±0.33.5±0.37.8±0.32.57.53.051.9BSFCDKC CRKC SERIES
BSF0705CDKC7.0±0.35.0±0.37.8±0.32.57.53.051.9BSFCDKC CRKC SERIES
BSF0705CRKC7.0±0.35.0±0.37.8±0.32.57.53.051.9BSFCDKC CRKC SERIES
BSF1004CDKC9.0±0.34.0±0.310.0±0.32.99.53.652.5BSFCDKC CRKC SERIES
BSF1005CDKC9.0±0.35.4±0.310.0±0.32.99.53.652.5BSFCDKC CRKC SERIES
BSF1006CDKC9.0±0.36.8±0.310.0±0.32.99.53.652.5BSFCDKC CRKC SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
