SPECIFICATION OF BSF□□□□SNRA SERIES

FEATURE
  1. Low profile construction and miniature size.
  2. High magnetic shield construction and acted high performance for EMC/EMI protection.
  3. Low coil resistance with large current.
  4. 100% lead (Pb) free meet RoHS standard.
APPLICATIONS
  1. D/D converter unit design for mobile product, VRM for server.
  2. DVD、HDD、STB、LCD display、IP CAM、 GPS、USB connector、Smart phones、Face Recognition System、IoT application...etc.
ORDERING CODE.
BSF□NR□
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING

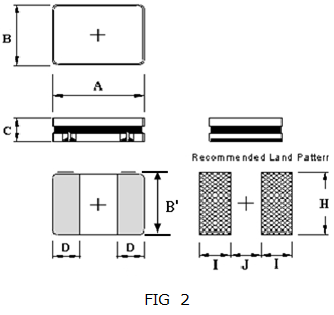

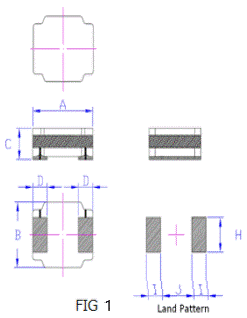

SHAPE & DIMENSIONS(mm)

BSF□NR□
BSF□NR□

UNIT : mm (inch)

SIZE CODEABB'CD

HIJFIGSeries Spec.
BSF2010BNR□2.00±0.201.60±0.20-1.05 max0.60±0.201.110.91BSF□NR□
BSF2510SNR□2.50±0.252.10±0.202.25±0.201.00max0.85±0.202.30.950.92BSF□NR□
BSF2512SNR□2.50±0.252.10±0.202.25±0.201.20max0.85±0.202.30.950.92BSF□NR□
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
