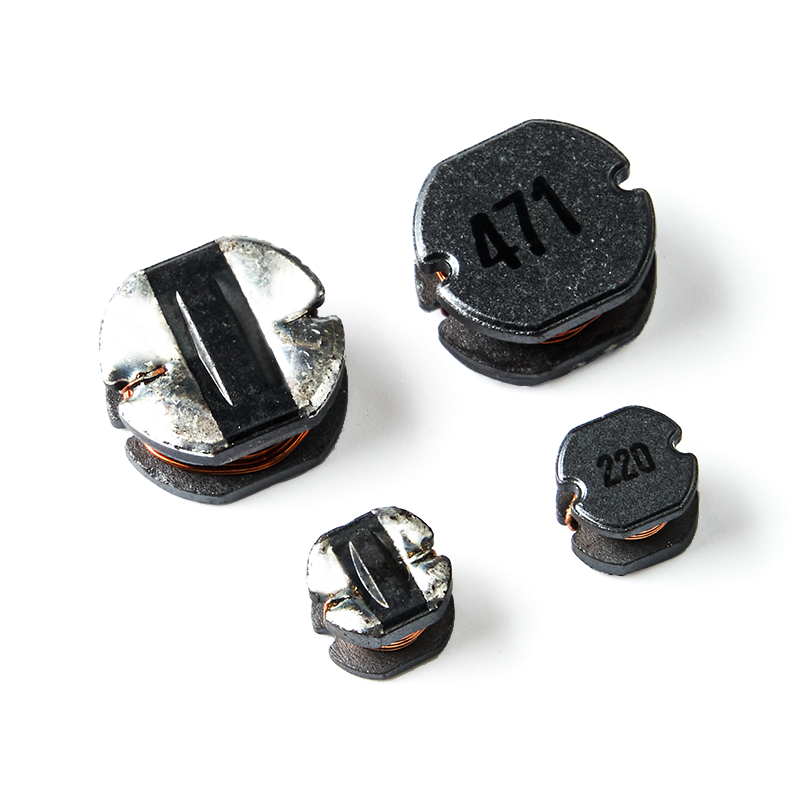

SMD POWER INDUCTORS / BS□□□□ CDSU SERIES

FEATURE
  1. To be high saturation for surface mounting type inductors.
  2. Low cost feature.
APPLICATIONS

VTR ; QA equipment ; LCD television set ; nootbook PC ; portable communication equipments ; DC to DC converters ; etc.

ORDERING CODE.
BS-CDSU
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(K:±10%;M:±20%)
  4. REEL TAPING
Appearance and Dimensions (mm)
BS-CDSU

UNIT : mm (inch)

SIZE CODEABCDEFGSeries Spec.
BS0302CDSU3.0±0.32.3(max)3.5±0.31.2Typ3.51.60.8BS-CDSU
BS0403CDSU4.0±0.33.2±0.34.5±0.31.5Typ4.52.10.8BS-CDSU
BS0502CDSU5.2±0.32.5±0.35.8±0.32.0Typ5.52.251.5BS-CDSU
BS0503CDSU5.2±0.33.0±0.35.8±0.32.0Typ5.52.251.5BS-CDSU
BS0504CDSU5.2±0.34.5±0.35.8±0.32.0Typ5.52.251.5BS-CDSU
BS0703CDSU7.0±0.33.5±0.37.8±0.32.5Typ7.53.051.9BS-CDSU
BS0705CDSU7.0±0.35.0±0.37.8±0.32.5Typ7.53.051.9BS-CDSU
BS1004CDSU9.0±0.34.0±0.310.0±0.32.9Typ9.53.652.5BS-CDSU
BS1005CDSU9.0±0.35.4±0.310.0±0.32.9Typ9.53.652.5BS-CDSU
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
