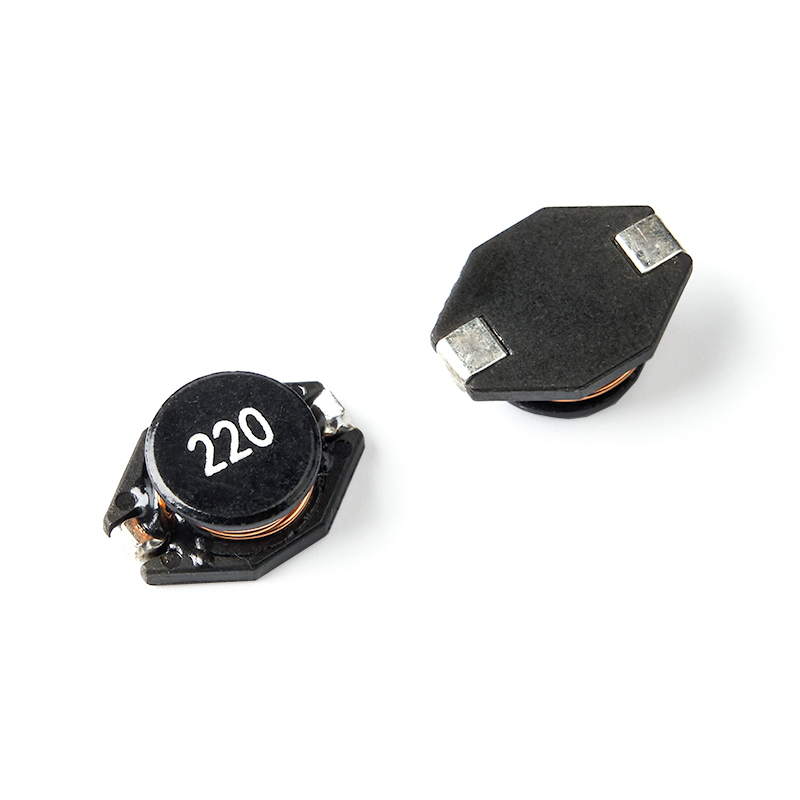

SMD POWER INDUCTORS /BS□□□□ DOCCSERIES

FEATURE
  1. Open magnetic circuit construction.
  2. High energy storage and very low resistance.
  3. Compact and thin.
APPLICATIONS

Excellent as DC to DC converter used in Notebook computers , PDA , Mobile phone , Step-down converters.

ORDERING CODE.
BS-DOCC
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:±20%,N:±30%)
  4. REEL TAPING
Appearance and Dimensions (mm)
0402 SERIES

BS-DOCC

0802 0804 0810 SERIES

BS-DOCC

1306 SERIES

BS-DOCC

UNIT : mm (inch)

SIZE CODEA(MAX)B(MAX)CD(MAX)EFGHIJKSeries Spec.
BS0402DOCC6.64.454.0±0.32.921.27±0.31.02±0.34.32±0.32.50±0.33.561.44.06BS-DOCC
BS0802DOCC12.959.48.38±0.332.54±0.32.54±0.37.62±0.3---2.792.927.37BS-DOCC
BS0804DOCC12.959.48.38±0.35.212.54±0.32.54±0.37.62±0.3---2.792.927.37BS-DOCC
BS0810DOCC12.959.48.38±0.311.432.54±0.32.54±0.37.62±0.3---2.792.927.37BS-DOCC
BS1306DOCC18.5415.2412.7±0.37.112.54±0.32.54±0.312.70±0.3---2.792.9212.45BS-DOCC
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
