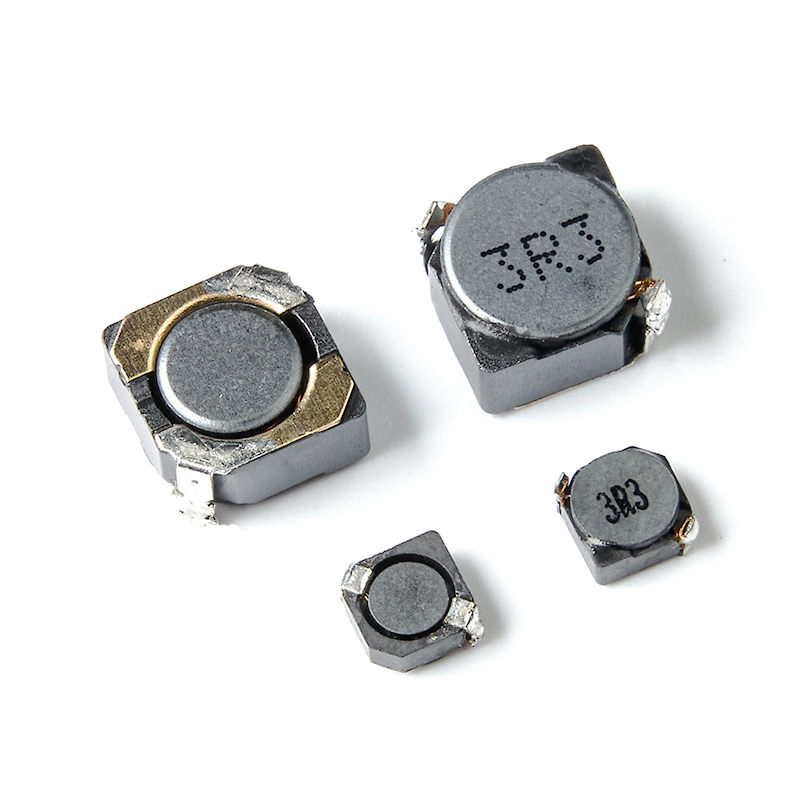

SMD POWER INDUCTORS /BSF□D□□ RHSU SERIES

FEATURE

Compact and thin Large permissible DC current and low DC resistance.

APPLICATIONS
  1. DC to DC converter of portable equipment.
  2. Camcorder ; LCD television set ; Digital still camera ; P.D.A. ; Notebook.
  3. Small size communication equipment.
ORDERING CODE.
BSF-XDX8
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:±20%;N:±30%)
  4. REEL TAPING
Appearance and Dimensions (mm)

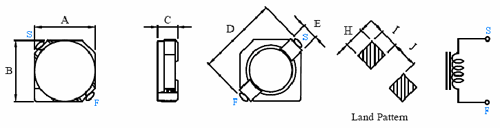

2D 3D SERIES

BSF-XDX8

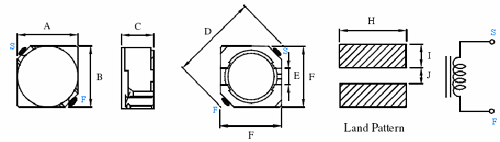

4D 5D 6D SERIES

BSF-XDX8

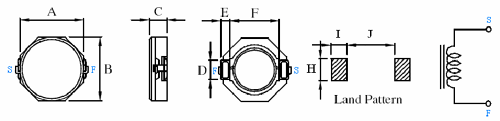

8D SERIES

BSF-XDX8


UNIT : mm (inch)

SIZE CODEABCDE(Ref.)FHIJSeries Spec.
BSF2D09RHSU3.2(MAX)3.2(MAX)1.00(MAX)4.3(MAX)1---1.31.31.7BSF-XDX8
BSF2D11RHSU3.2(MAX)3.2(MAX)1.20(MAX)4.3(MAX)1---1.31.31.7BSF-XDX8
BSF2D14RHSU3.2(MAX)3.2(MAX)1.55(MAX)4.3(MAX)1---1.31.31.7BSF-XDX8
BSF2D18RHSU3.2(MAX)3.2(MAX)2.0(MAX)4.3(MAX)1---1.31.31.7BSF-XDX8
BSF3D11RHSU4.0(MAX)4.0(MAX)1.20(MAX)5.2(MAX)1---1.31.42.4BSF-XDX8
BSF3D16RHSU4.0(MAX)4.0(MAX)1.80(MAX)5.2(MAX)1---1.31.42.4BSF-XDX8
BSF3D28RHSU4.0(MAX)4.0(MAX)3.00(MAX)5.2(MAX)1---1.31.42.4BSF-XDX8
BSF4D18RHSU4.7±0.34.7±0.32.0(MAX)6.9(MAX)1.54.55.31.91.5BSF-XDX8
BSF4D28RHSU4.7±0.34.7±0.33.0(MAX)6.9(MAX)1.54.55.31.91.5BSF-XDX8
BSF5D18RHSU5.7±0.35.7±0.32.0(MAX)8.2(MAX)25.56.32.152BSF-XDX8
BSF5D28RHSU5.7±0.35.7±0.33.0(MAX)8.2(MAX)25.56.32.152BSF-XDX8
BSF6D28RHSU6.7±0.36.7±0.33.0(MAX)9.5(MAX)26.57.32.652BSF-XDX8
BSF6D38RHSU6.7±0.36.7±0.34.0(MAX)9.5(MAX)26.57.32.652BSF-XDX8
BSF8D28RHSU8.3(MAX)8.3(MAX)3.0(MAX)2.5(MAX)1.26.32.826.1BSF-XDX8
BSF8D43RHSU8.3(MAX)8.3(MAX)4.5(MAX)2.5(MAX)1.26.32.826.1BSF-XDX8
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
