FBCA SERIES

    Attachment

    Series Specification
    RoHS Data

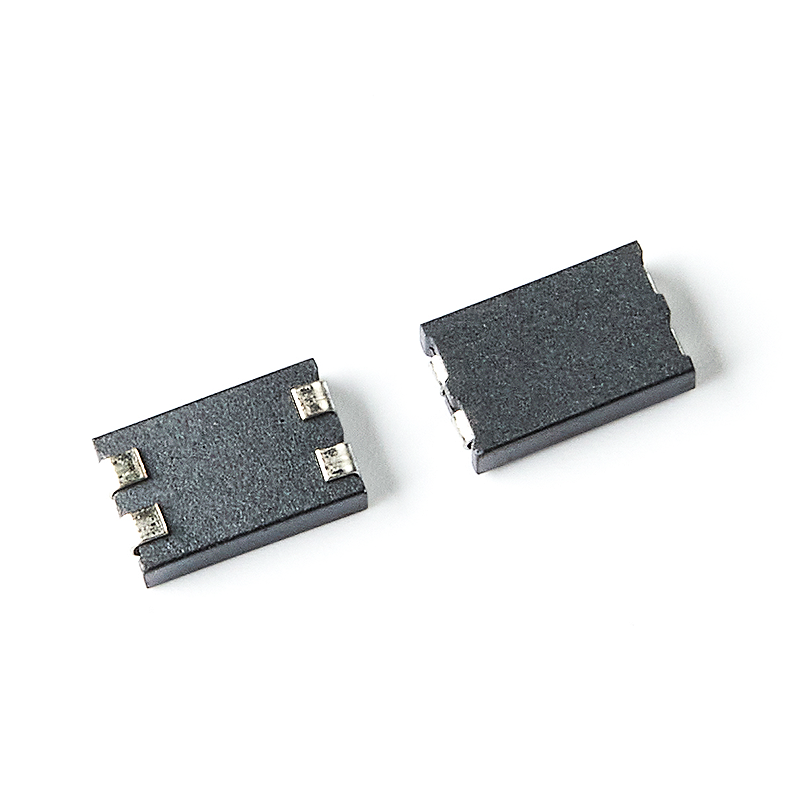

    SMD COMMON MODE CHOKE --> FBCA TYPE

    FEATURE
    1. High impedance for common mode noise and low impedance for differential mode signal.
    2. Large rated current available.
    3. Wide band or sharp type impedance curve available.
    4. SMD or DIP available.
    APPLICATIONS

    Prevention of common mode noise on signal Lines and power lines for computer related or electronic products.

    ORDERING CODE.
    FBCA SERIES
    1. PRODUCT CODE
    2. MATERIAL CODE
    3. SIZE CODE
    4. DESIGN CODE
    5. TAPING

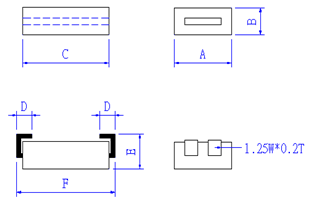

    Appearance and Dimensions (mm)
    FBCA SERIES

    UNIT : mm (inch)

    ORDERING CODE

    A

    B

    C

    D

    E

    F

    rdc
    m(Ω)

    		IMPEDANCE(Ω)

    RATED CURRENT(mA)

    25MHz100MHz
    FBCA-A-562585-L-T5.6±0.42.5±0.38.5±0.41.5±0.53.2(max)8.9±0.41032516000
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
