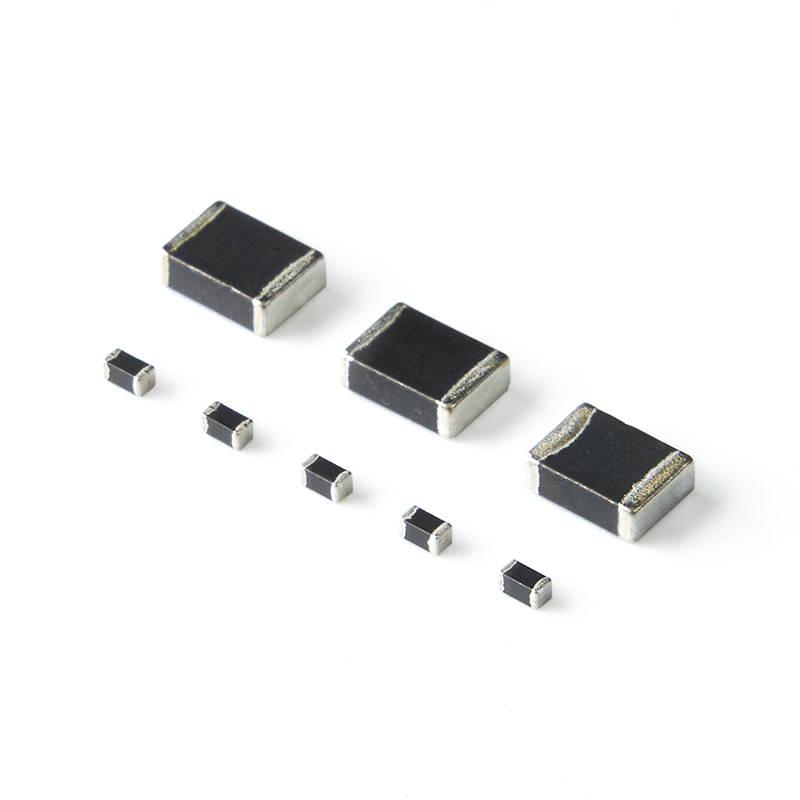

FBM□-ˍˍˍˍA□□ High Current and DC Power Line





SPECIFICATION OF FBM□-_ _ _ _A□□ SERIES

APPLICATIONS
  1. EMI suppression for various electric equipment by the addition of impedance to the circuit
  2. It is particularly effective with unstable grounding
  3. High frequency EMI prevention of computers ; printers ; VCRs ; TVs and portable telephone.
  4. The FBM□-A□□ series can be used in highcurrent circuits due to its low DC resistance. It can match power line to a maximum of 10A DC.
ORDERING CODE.
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
  1. PRODUCT TYPE CODE
    FBM : Ferrite Bead Multilayer
    FBMA : Lead Free Solder Terminal
    口: RoHS Code
  2. DESIGN CODE
    Type : 11;10;09;15;HA;L11;L10
  3. SIZE CODE
    See Following Table
  4. IMPEDANCE VALUE CODE
    Example : 121=120Ω ; 280=28Ω
  5. AXX MEANS HIGH CURRENT RATING
    Example :
    A10 means 1000mA
    A08 means 800mA
  6. R:Special DCR CODE
  7. TAPING
SHAPE & DIMENSIONS.
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
UNIT : mm (inch)
TYPEABCDSeries Spec.
FBM□-11-100505
(0402)
1.00±0.10
(0.040±0.004)
0.50±0.10
(0.020±0.004)
0.50±0.10
(0.020±0.004)
0.25±0.10
(0.010±0.004)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
FBM□-11-160808
(0603)
1.60±0.20
(0.063±0.008)
0.80±0.20
(0.031±0.008)
0.80±0.20
(0.031±0.008)
0.30±0.20
(0.012±0.008)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
FBM□-11-201209
(0805)
2.00±0.20
(0.079±0.008)
1.20±0.20
(0.047±0.008)
0.90±0.20
(0.035±0.008)
0.50±0.30
(0.020±0.012)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
FBM□-11-321611
(1206)
3.20±0.20
(0.126±0.008)
1.60±0.20
0.063±0.008)
1.10±0.20
(0.043±0.008)
0.50±0.30
(0.020±0.012)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
FBM□-11-322513
(1210)
3.20±0.20
(0.126±0.008)
2.50±0.20
(0.098±0.008)
1.30±0.20
(0.051±0.008)
0.50±0.30
(0.020±0.012)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
FBM□-11-451616
(1806)
4.50±0.20
(0.177±0.008)
1.60±0.20
(0.063±0.008)
1.60±0.20
(0.063±0.008)
0.50±0.30
(0.020±0.012)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
FBM□-11-453215
(1812)
4.50±0.20
(0.177±0.008)
3.20±0.20
(0.126±0.008)
1.50±0.20
(0.059±0.008)
0.50±0.30
(0.020±0.012)
FBM□-ˍˍˍˍA□□ High Current and DC Power Line
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
