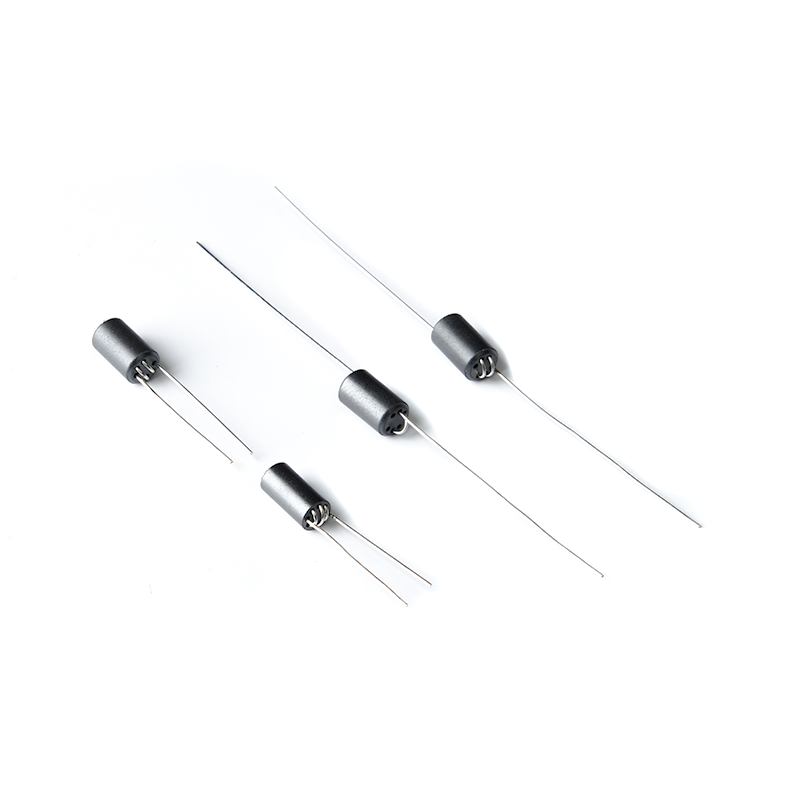

    WIDE BAND CHOKE ( R6H TYPE )

    APPLICATIONS

    The R6H type wide-band chockes are mainly used in the PC boards to filter the EMI from the outsides
    * High performance medium current DC power and signal filtering

    ORDERING CODE.
    R6H
    1. MATERIAL CODE
    2. PRODUCT CODE
    3. SIZE CODE
    4. TURNS WOUND
    SHAPE
    R6H
    R6H
    DIMENSIONS & CHARACTERISTICSUNIT : mm (inch)
    NOORDERING CODEABC
    1R6H 6*10*0.85-1.5Ts6.00±0.2510.00±0.400.85±0.20
    2R6H 6*10*0.85-2Ts6.00±0.2510.00±0.400.85±0.20
    3R6H 6*10*0.85-2.5Ts6.00±0.2510.00±0.400.85±0.20
    4R6H 6*10*0.85-2*1.5Ts6.00±0.2510.00±0.400.85±0.20
    5R6H 6*10*0.85-3Ts6.00±0.2510.00±0.400.85±0.20
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
