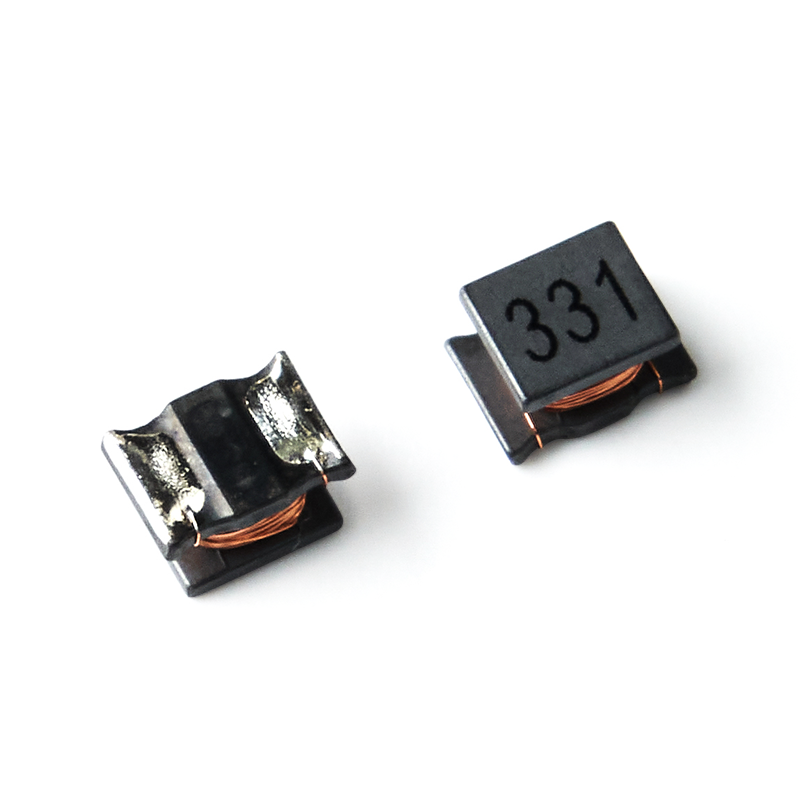

Miniature Surface Mount Chip Inductors /BS□□□□ LQCMU SERIES

FEATURE
  1. This miniature chip inductors wound on a special ferrite core.
  2. Low DC resistance , high current capacity , and high saturation for surface mounting.
  3. They are excellent for use as choke coil in DC power supply circuits.
  4. Excellent solder heat resistance. Both flow and re flow soldering methods can be employed.
APPLICATIONS

Personal computers. Disk Drives and computer peripherals.
Pagers, Cordless phone. DC power supply circuits.

ORDERING CODE.
BS-LQCMU SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(J:±5%,K:±10%,M:±20%)
  4. REEL TAPING
Appearance and Dimensions (mm)
BS-LQCMU SERIES

UNIT : mm (inch)

SIZE CODEABCEFGSeries Spec.
BS3216LQCMU3.2±0.31.6±0.21.8±0.21.511.5BS-LQCMU SERIES
BS3225LQCMU3.2±0.32.5±0.22.0±0.21.512BS-LQCMU SERIES
BS4532LQCMU4.5±0.33.2±0.22.6±0.221.23BS-LQCMU SERIES
BS5750LQCMU5.7±0.35.0±0.34.7±0.3225BS-LQCMU SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
