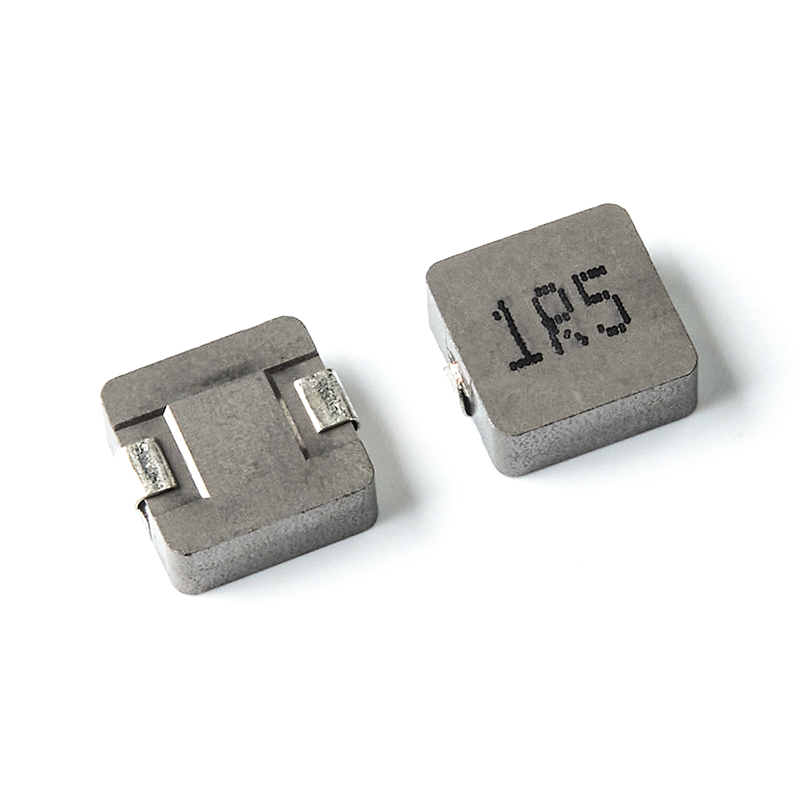

BSF1004LPHD SERIES

SPECIFICATION OF BSF MOLDING TYPE SERIES

FEATURE
  1. High performance (Isat) realized by metal dust core.
  2. Low Profile to thickness 4mm.
  3. Low loss with low DCR.
  4. RoHS compliant.
APPLICATIONS

DC/DC Converter for CPU in Notebook PC.
Graphic Card , VRM , POL , DSC , Mobile Phone , LCD panel , LCD TV , HD.

ORDERING CODE.
BSF1004LPHD SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING
SHAPE & DIMENSIONS Unit:(mm)
BSF1004LPHD SERIES

UNIT : mm (inch)

SIZE CODEA
mm
B
mm
C
mm
D
mm
E
mm
Series Spec.
BSF1004LPHD10.0±0.311.5max3.8±0.23.0±0.52.0±0.5BSF1004LPHD SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
