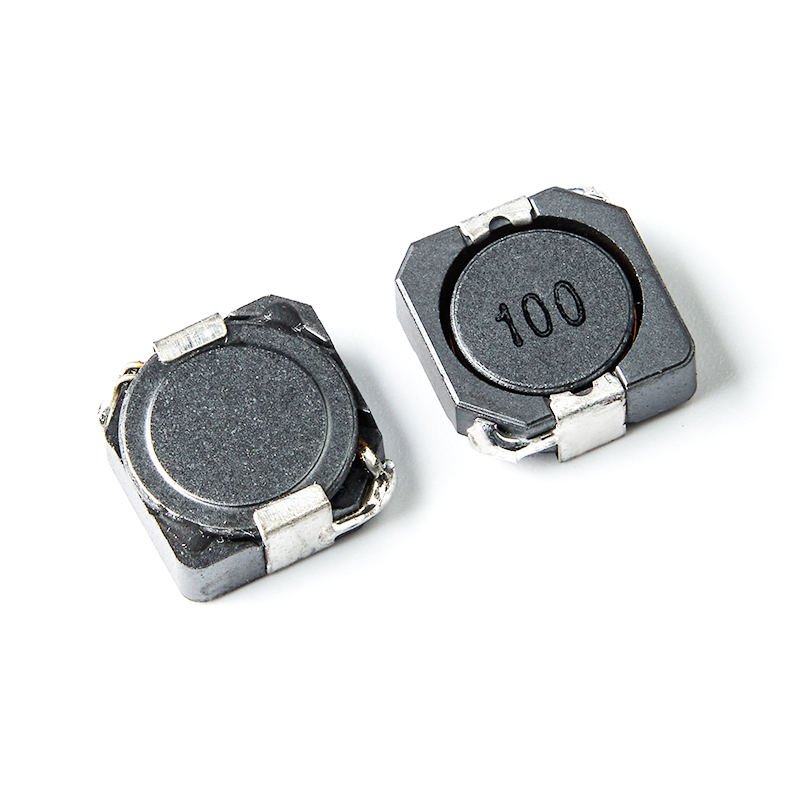

SMD POWER INDUCTORS /BSF□□□□ RHGS SERIES

FEATURE

To be high saturation for surface mounting.

APPLICATIONS

OA equipment ; VTR ; LCD television set ; notebook PC ; portable communication equipments DC to DC converters ; etc.

ORDERING CODE.
BSF-RHGS
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:±20%,N:±30%)
  4. REEL TAPING
Appearance and Dimensions (mm)
BSF-RHGS

UNIT : mm (inch)

SIZE CODEA(MAX)B(MAX)C(MAX)D(MAX)EFHIJSeries Spec.
BSF1003RHGS10.310.4313.57.7±0.33.0±0.13.61.77.3BSF-RHGS
BSF1004RHGS10.310.4413.57.7±0.33.0±0.13.61.77.3BSF-RHGS
BSF1005RHGS10.310.4513.57.7±0.33.0±0.13.61.77.3BSF-RHGS
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
