T52/T26

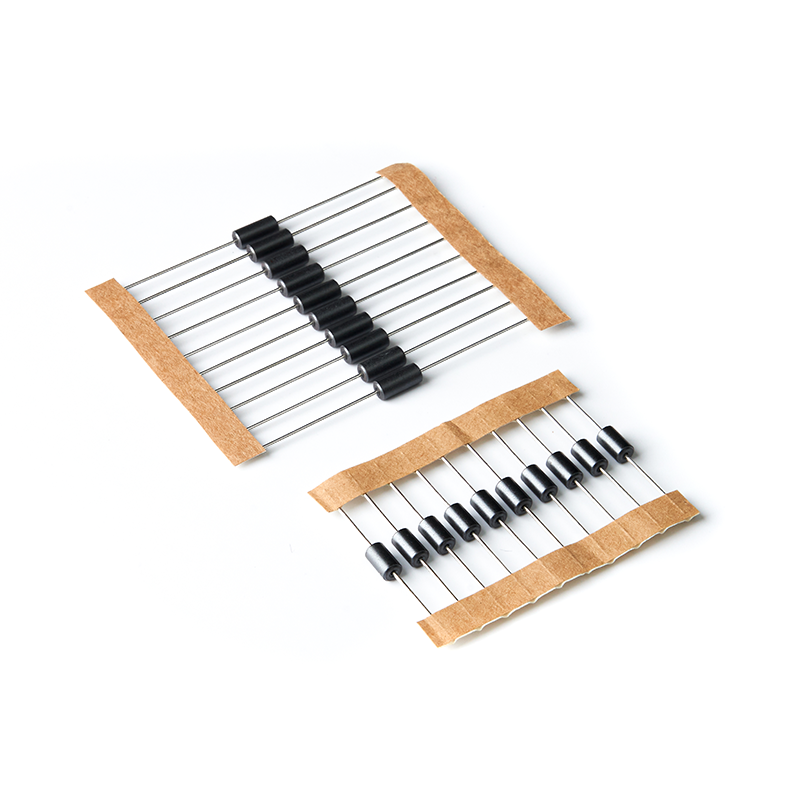

BEAD CORES ( AXIAL TAPPING TYPE )
APPLICATIONS
The taping ferrite bead cores are produced for the automatic insertion into the PC boards
ORDERING CODE.
- MATERIAL CODE
- PRODUCT CODE
- SIZE CODE
- TAPING:(Lead Length T52 or T26
SHAPE
| DIMENSIONS & CHARACTERISTICS | UNIT : mm (inch) | |||
| NO | ORDERING CODE | A | B | IDC(A)△T40℃ |
|---|---|---|---|---|
| 1 | RH 2.5*3*0.8-T52 | 2.50±0.15 | 3.00±0.20 | 6 |
| 2 | RH 2.5*4*0.8-T52 | 2.50±0.15 | 4.00±0.30 | 6 |
| 3 | RH 2.5*7*0.8-T52 | 2.50±0.15 | 7.00±0.30 | 6 |
| 4 | T 3.5*3*0.8-T52 | 3.50±0.15 | 3.00±0.20 | 6 |
| 5 | T 3.5*3.2*0.8-T52 | 3.50±0.15 | 3.20±0.20 | 6 |
| 6 | RH 3.5*3.5*0.8-T52 | 3.50±0.15 | 3.50±0.20 | 6 |
| 7 | RH 3.5*4.5*0.8-T26 | 3.50±0.15 | 4.50±0.30 | 6 |
| 8 | RH 3.5*4.5*0.8-T52 | 3.50±0.15 | 4.50±0.30 | 6 |
| 9 | RH 3.5*4.7*0.8-T26 | 3.50±0.15 | 4.70±0.30 | 6 |
| 10 | RH 3.5*4.7*0.8-T52 | 3.50±0.15 | 4.70±0.30 | 6 |
| 11 | RH 3.5*5*0.8-T26 | 3.50±0.15 | 5.00±0.30 | 6 |
| 12 | RH 3.5*5*0.8-T52 | 3.50±0.15 | 5.00±0.30 | 6 |
| 13 | RH 3.5*6*0.8-T26 | 3.50±0.15 | 6.00±0.30 | 6 |
| 14 | RH 3.5*6*0.8-T52 | 3.50±0.15 | 6.00±0.30 | 6 |
| 15 | RH 3.5*6.7*0.8-T52 | 3.50±0.15 | 6.70±0.30 | 6 |
| 16 | RH 3.5*7.5*0.8-T52 | 3.50±0.15 | 7.50±0.30 | 6 |
| 17 | RH 3.5*8*0.8-T26 | 3.50±0.15 | 8.00±0.30 | 6 |
| 18 | RH 3.5*8*0.8-T52 | 3.50±0.15 | 8.00±0.30 | 6 |
| 19 | RH 3.5*8.3*0.8-T52 | 3.50±0.15 | 8.30±0.30 | 6 |
| 20 | RH 3.5*9*0.8-T26 | 3.50±0.15 | 9.00±0.30 | 6 |
| 21 | RH 3.5*9*0.8-T52 | 3.50±0.15 | 9.00±0.30 | 6 |
| 22 | RH 3.5*9.5*0.8-T52 | 3.50±0.15 | 9.50±0.40 | 6 |
| 23 | RH 3.5*10*0.8-T52 | 3.50±0.15 | 10.00±0.40 | 6 |
| 24 | RH 3.5*11.4*0.8-T52 | 3.50±0.15 | 11.40±0.40 | 6 |
| 25 | RH 3.5*14*0.8-T52 | 3.50±0.15 | 14.00±0.40 | 6 |
- Other sizes are available upon request.
- All the data listed in this catalogue are for reference only; King Core reserves
the right to alter or revise the specifications without prior notification.
