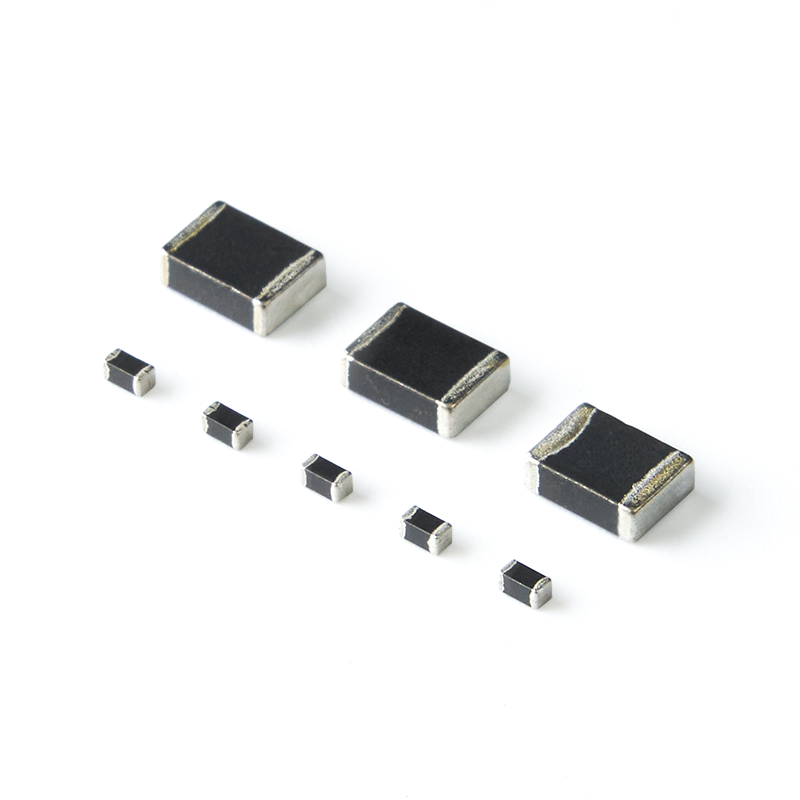

FBM□-H Type For GHz High Impedance





    Attachment

    Series Specification
    RoHS Data
    Packaging
    Reliability Test

    SPECIFICATION OF FBMA-H SERIES

    APPLICATIONS
    1. EMI prevention for mobile phone, Pad, Notebook,W-LAN, Optical pickup modules…etc
    2. It is particularly effective to suppress noise fromHigh speed data line, or prevention of erroneous operation cause by local oscillation signal.
    3. EMI suppression frequency range cover 700 -1000MHz,and 1GH – 3 GHz with high impedance.
    4. Lower DC resistance type can be provided under Customer request.
    ORDERING CODE.
    FBM□-H Type For GHz High Impedance
    1. PRODUCT TYPE CODE
      FBMA : Lead Free Solder Terminal
      A: RoHS Code
    2. DESIGN CODE
      Type : 6H、1H
    3. SIZE CODE
      See Following Table
    4. IMPEDANCE VALUE CODEExample : 070=7Ω ; 601=600Ωat 100MHz
    5. TAPING
    SHAPE & DIMENSIONS.
    FBM□-H Type For GHz High Impedance
    UNIT:mm (inch)
    TYPEABCD
    FBMA-XH-100505
    (0402)    		1.00±0.10
    (0.040±0.004)    		0.50±0.10
    (0.020±0.004)    		0.50±0.10
    (0.020±0.004)    		0.25±0.10
    (0.010±0.004)
    1. Other sizes are available upon request.
    2. All the data listed in this catalogue are for reference only; King Core reserves
      the right to alter or revise the specifications without prior notification.
