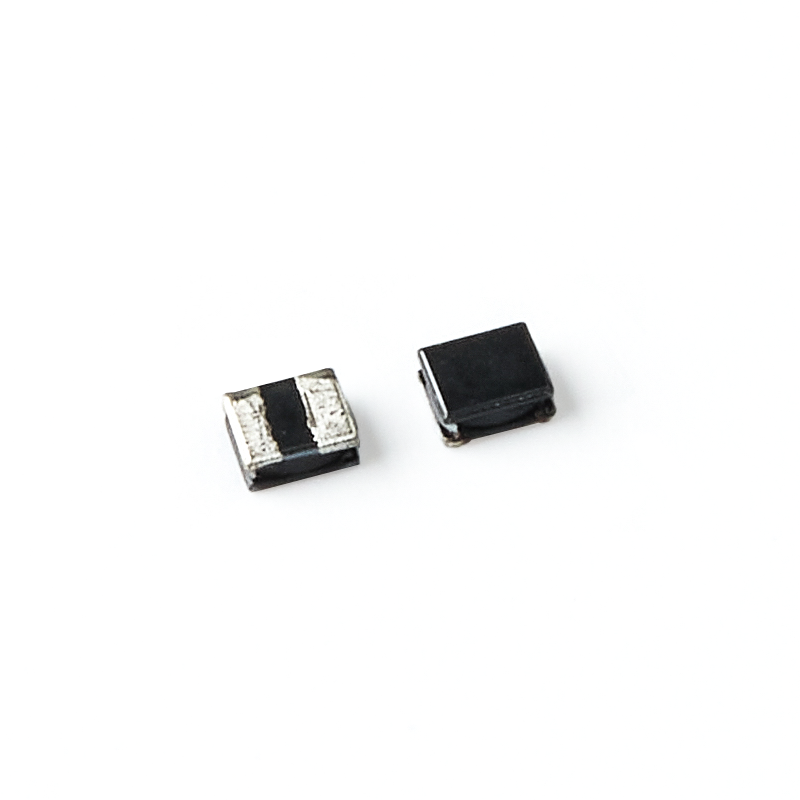

BSFQ-□NR□ SERIES



Applications

SPECIFICATION OF BSFQ-□NR□ SERIES

FEATURE
  1. SMT designed ferrite/alloy core with magnetic.
  2. High magnetic shielding construction and acted high performance for EMC/EMI protection.
  3. Low coil resistance with high current application.
  4. Compatible with Pb-free RoHS and AEC-Q200.
APPLICATIONS
  1. Automotive application.
  2. Automotive Grade
ORDERING CODE.
BSFQ-□NR□ SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING

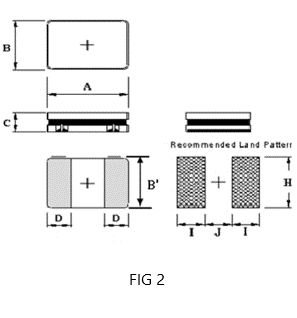

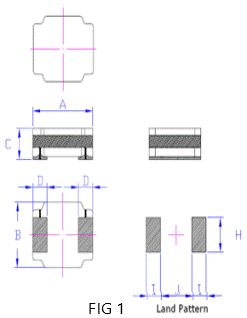

SHAPE & DIMENSIONS(mm)

BSFQ-□NR□ SERIESBSFQ-□NR□ SERIES

UNIT : mm (inch)

SIZE CODEABB'CDHIJFIGSeries Spec.
BSFQ2010BNRA2.00±0.201.60±0.20-1.05max0.60±0.201.110.91BSFQ-□NR□ SERIES
BSFQ2510SNRA2.50±0.252.10±0.202.25±0.201.00max0.85±0.202.30.950.92BSFQ-□NR□ SERIES
BSFQ2512SNRA2.50±0.252.10±0.202.25±0.201.20max0.85±0.202.30.950.92BSFQ-□NR□ SERIES
BSFQ2512SNRB2.50±0.252.10±0.202.25±0.201.20max0.85±0.202.30.950.92BSFQ-□NR□ SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
