BSFxxxxMPHD SERIES

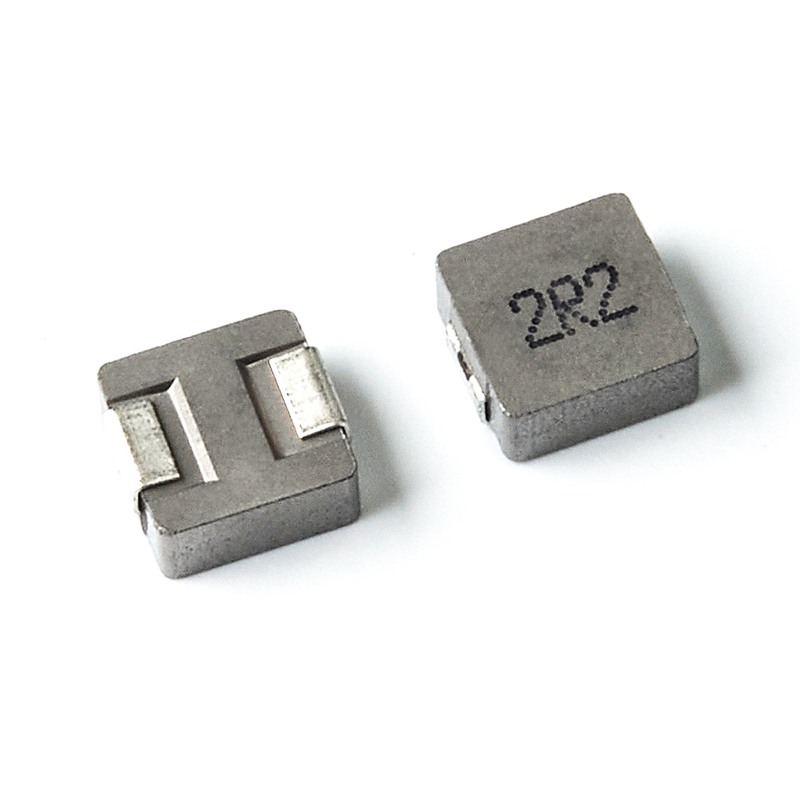

SPECIFICATION OF BSF MOLDING TYPE SERIES

FEATURE
  1. High performance (Isat) realized by metal dust core.
  2. Very low profile : Thickness with 1.6 to 5.0 mm.
  3. Low loss with low DCR.
  4. Capable of corresponding high frequency (3MHz).
  5. RoHS compliant.
APPLICATIONS

DC/DC Converter for CPU in Notebook PC.
Graphic Card , VRM , POL , DSC , Mobile Phone , LCD panel , LCD TV , HD.

ORDERING CODE.
BSFxxxxMPHD SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING
SHAPE & DIMENSIONS Unit:(mm)
BSFxxxxMPHD SERIES

UNIT : mm (inch)

SIZE CODEA
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Series Spec.
BSF0402MPHD4.20±0.254.40±0.351.8±0.22.0±0.30.8±0.35.22.22.5BSFxxxxMPHD SERIES
BSF0503MPHD5.2±0.25.4±0.32.8±0.22.2±0.31.2±0.26.02.22.5BSFxxxxMPHD SERIES
BSF0603MPHD6.6±0.27.0±0.32.8±0.23.0±0.31.6±0.38.43.73.5BSFxxxxMPHD SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
