BSFxxxxSMSE SERIES

SPECIFICATION OF BSFxxxxSMSE SERIES

FEATURE
  1. High performance (Isat) realized by metal dust core.
  2. Low profile : Thickness with 2.0 to 7.0 mm for different size.
  3. Low loss realized with low DCR
  4. Capable of corresponding high frequency (1MHz).
  5. Halogen free, lead free, RoHS compliant.
APPLICATIONS

DC/DC Converter for CPU in Notebook PC.
Thin type on-board power supply module for exchanger. VRM for server.
Graphic Card , DSC , Mobile Phone , LCD panel , LCD TV , HDD.

ORDERING CODE.
BSFxxxxSMSE SERIES
  1. PRODUCT TYPE CODE AND SIZE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:20%,N:30%)
  4. REEL TAPING

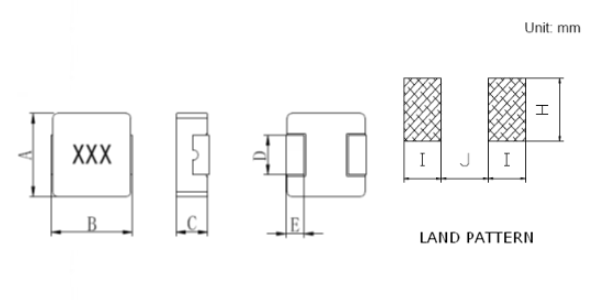

SHAPE & DIMENSIONS Unit:(mm)
BSFxxxxSMSE SERIES

UNIT : mm (inch)

SIZE CODEA
mm
B
mm
C
mm
D
mm
E
mm
H
TYP
I
TYP
J
TYP
Series Spec.
BSF0402SMSE4.2±0.254.40±0.351.8±0.22.0REF0.8REF2.51.52.2BSFxxxxSMSE SERIES
BSF0603SMSE6.6±0.27.0±0.32.8±0.23.0REF1.6REF3.52.353.7BSFxxxxSMSE SERIES
BSF1004SMSE10.0±0.311.5max3.8±0.23.0REF2.0REF4.83.55BSFxxxxSMSE SERIES
BSF1265SMSE12.6±0.313.45±0.356.5max5.0REF2.OREF53.258BSFxxxxSMSE SERIES
BSF1770SMSE17.15max17.15±0.357.0max12.0REF2.5REF12.193.1711.68BSFxxxxSMSE SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
