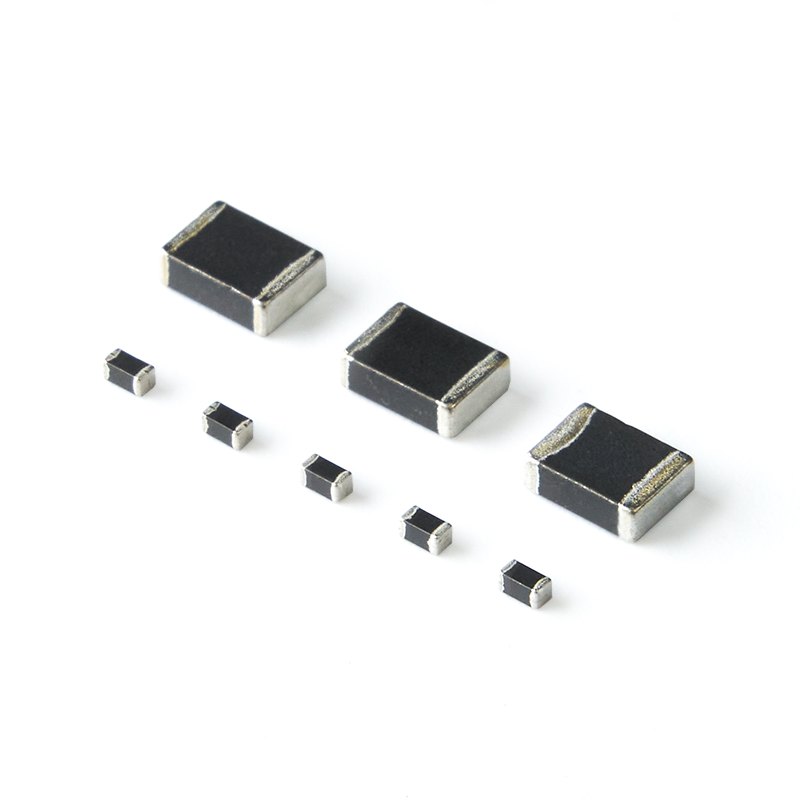

SPECIFICATION OF FBM□-11 SERIES

APPLICATIONS
  1. EMI suppression for various electric equipment by the addition of impedance to the circuit.
  2. It is particularly effective with unstable grounding.
  3. High frequency EMI prevention of computers, printers, VCRs, TVs and portable telephone.
  4. The FBM口-11 series generates an impedance from the relatively low to high frequency.
    Therefore the FBM口-11 series is effective in noise suppression in the wide frequency range.
ORDERING CODE.
FBM-11 For General Signal Line
  1. PRODUCT TYPE CODE
    FBM : Ferrite Bead Multilayer
    口: RoHS Code
  2. DESIGN CODE
    Type : 11,10,09,15,HA,L11,L10
  3. SIZE CODE
    See Following Table
  4. IMPEDANCE VALUE CODE
    Example : 121=120Ω , 280=28Ω
  5. TAPING
SHAPE & DIMENSIONS.
FBM-11 For General Signal Line

UNIT : mm (inch)

TYPEABCDSeries Spec.
FBM□-11-100505
(0402)
1.0±0.10
(0.040±0.004)
0.5±0.1
(0.020±0.004)
0.5±0.1
(0.020±0.004)
0.25±0.1
(0.010±0.004)
FBM-11 For General Signal Line
FBM□-11-160808
(0603)
1.60±0.20
(0.063±0.008)
0.80±0.20
(0.031±0.008)
0.80±0.20
(0.031±0.008)
0.30±0.20
(0.012±0.008)
FBM-11 For General Signal Line
FBM□-11-201209
(0805)
2.00±0.20
(0.079±0.008)
1.20±0.20
(0.047±0.008)
0.90±0.20
(0.035±0.008)
0.50±0.30
(0.020±0.012)
FBM-11 For General Signal Line
FBM□-11-321611
(1206)
3.20±0.20
(0.126±0.008)
1.60±0.20
(0.063±0.008)
1.10±0.20
(0.043±0.008)
0.50±0.30
(0.020±0.012)
FBM-11 For General Signal Line
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
