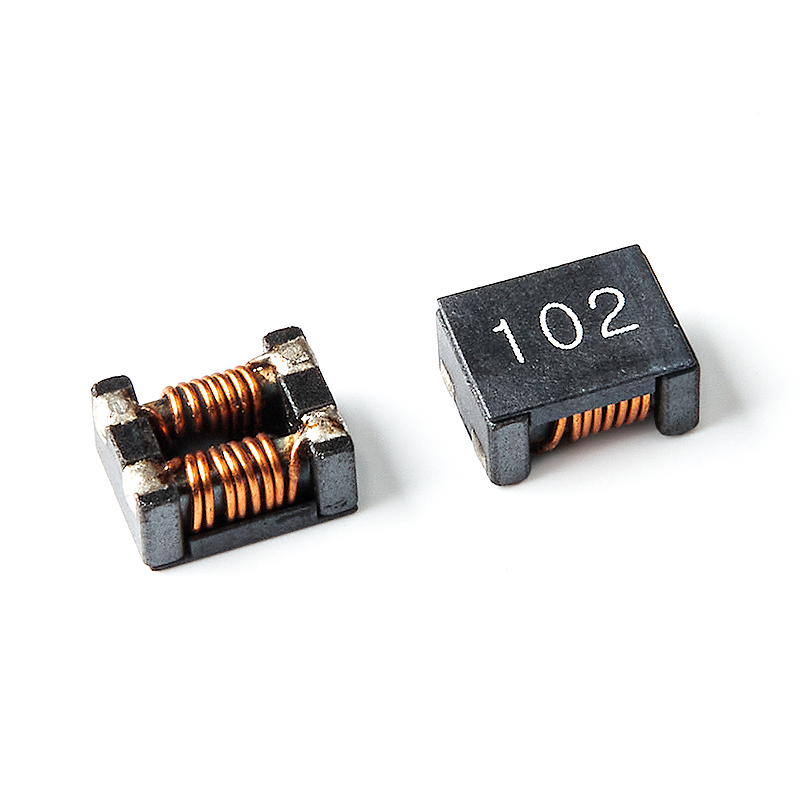

WCM-SE SERIES

SPECIFICATION OF WCMxxxxSE SERIES

FEATURE

From big to small size SMD Design,Wire wound constructure common mode choke with best EMI suppression effect high impedance but very high rated current and low RDC

APPLICATIONS

Preventive measure against common mode noise radiation emissions from power line or else. Best for high current circuit such as car, wireless charging and power device design.

ORDERING CODE.
WCM-SE SERIES
  1. Product TypeCode
  2. Product Size Code
  3. IMPEDANCE CODE
  4. TAPING CODE

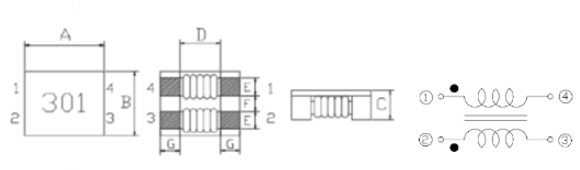

Appearance and Dimensions (mm)
WCM-SE SERIES
WCM-SE SERIESWCM-SE SERIESWCM-SE SERIESWCM-SE SERIESWCM-SE SERIES



APPEARANCE & DIMENSIONSUNIT : mm (inch)
SIZE CODEABCDEFGSeries Spec.
WCM-7060SE7.0±0.56.0±0.54.0max3.5 REF1.5REF1.5REF1.7REFWCM-SE SERIES
WCM-4520SEF4.7±0.54.5±0.52.4max2.7REF1.15REF0.85REF1.0REFWCM-SE SERIES
WCM-9070SEF9.0±0.57.0±0.55.0max5.7REF1.5REF2.0REF1.7REFWCM-SE SERIES
WCM-1211SEF12.0±0.510.8±0.56.6max7.0REF2.7REF2.5REF2.5&REFWCM-SE SERIES
WCM-1513SEF15.0±0.513.0±0.56.5max9.0REF2.7REF3.8REF3.0REFWCM-SE SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
