BSF-NRSTY SERIES

SMD POWER INDUCTORS / BSF□□□□ NRSTY SERIES

FEATURE
  1. Low profile and miniature size construction.
  2. Magnetic shielded construction.
  3. High saturation current.
  4. For D/D converter units of new generation portable products.
APPLICATIONS

DVD、DSC、PDA,LCD display、Smart phones,HDD,etc.

ORDERING CODE.
BSF-NRSTY SERIES
  1. Code of PRODUCT TYPE AND SIZE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE(M:±20%;N:±30%)
  4. REEL TAPING

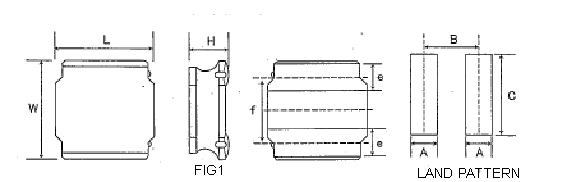

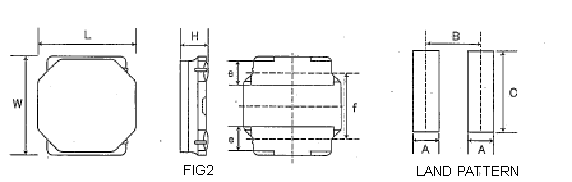

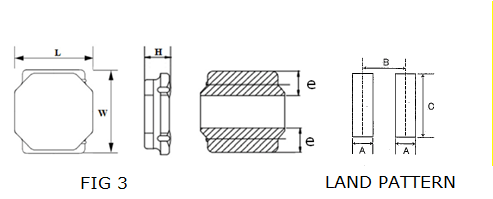

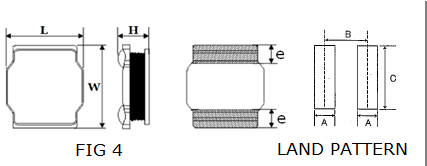

Appearance and Dimensions (mm)

BSF-NRSTY SERIES

BSF-NRSTY SERIES
BSF-NRSTY SERIES
BSF-NRSTY SERIES
SHAPE & DIMENSIONS
SIZE CODELWH
(max)
efABCFIGSeries Spec.
BSF3015NRSTY3.0±0.13.0±0.11.50.9±0.21.9±0.20.82.22.71BSF-NRSTY SERIES
BSF4010NRSTY4.0±0.24.0±0.211.1±0.22.5±0.21.22.83.71BSF-NRSTY SERIES
BSF4012NRSTY4.0±0.24.0±0.21.21.1±0.22.5±0.21.22.83.71BSF-NRSTY SERIES
BSF4018NRSTY4.0±0.24.0±0.21.81.2REF----1.22.83.73BSF-NRSTY SERIES
BSF5010NRSTY4.9±0.24.9±0.211.2±0.23.3±0.21.53.642BSF-NRSTY SERIES
BSF5012NRSTY4.9±0.24.9±0.21.21.2±0.23.3±0.21.53.642BSF-NRSTY SERIES
BSF5020NRSTY4.9±0.34.9±0.32.21.3REF----1.53.643BSF-NRSTY SERIES
BSF5024NRSTY4.9±0.24.9±0.22.51.2±0.23.3±0.21.53.642BSF-NRSTY SERIES
BSF5040NRSTY4.9±0.34.9±0.34.11.3REF----1.53.643BSF-NRSTY SERIES
BSF6010NRSTY6.0±0.26.0±0.211.35±0.24.0±0.21.64.75.72BSF-NRSTY SERIES
BSF6012NRSTY6.0±0.26.0±0.21.21.35±0.24.0±0.21.64.75.72BSF-NRSTY SERIES
BSF6014NRSTY6.0±0.26.0±0.21.41.35±0.24.0±0.21.64.75.72BSF-NRSTY SERIES
BSF6020NRSTY6.0±0.26.0±0.221.35±0.24.0±0.21.64.75.72BSF-NRSTY SERIES
BSF6028NRSTY6.0±0.26.0±0.22.81.35±0.24.0±0.21.64.75.72BSF-NRSTY SERIES
BSF6045NRSTY6.0±0.26.0±0.24.51.6REF----1.64.75.73BSF-NRSTY SERIES
BSF8030NRSTY8.0±0.28.0±0.231.6±0.35.6±0.31.85.67.51BSF-NRSTY SERIES
BSF8040NRSTY8.0±0.28.0±0.24.22.1REF----1.85.67.54BSF-NRSTY SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
