WOUND CHIP INDUCTORS /FLC□□□□NLCL SERIES

FEATURES
  1. Very strong solderability by flow soldering;solderingiron.
  2. Highly accurate dimensions;can be mounted automatically.
  3. Terminals are highly resistant to pull forces.
  4. Highly resistant to mechanical shocks and pressure.
  5. Highly reliable in environments of sudden temperature change and humidity . Super Q characteristics.
APPLICATIONS
  1. Microtelevisions;liquid crystal televisions;video cameras;portable VCRs;car radios;car stereos;thin tape radios;television tuners;mobile telephones;radio and other electronic devices.
  2. Modems; OA products; TV set; VCR; Etc.
ORDERING CODE.
FLCˍˍNLCL SERIES
  1. PRODUCT TYPE CODE
  2. INDUCTANCE
  3. INDUCTANCE TOLERANCE
    ( J : ±5%, K : ±10%, M : ±20%)
  4. REEL TAPING

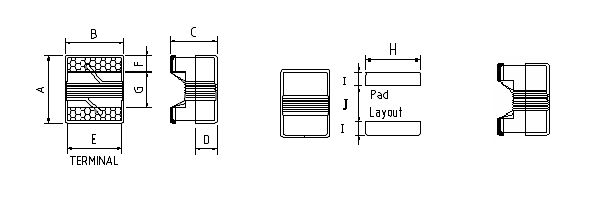

SHAPE & DIMENSIONS.
FLCˍˍNLCL SERIES

TERMINAL WRAPAROUND:

FLC160808NLCL:Approx. 0.008"/0.20mm BOTH ENDS
FLC201212NLCL:Approx. 0.015"/0.38mm BOTH ENDS
FLC252018NLCL:Approx. 0.015"/0.38mm BOTH ENDS




UNIT : mm (inch)

TYPEA
Max.
B
Max.
C
Max.
D
Ref.
EFGHIJSeries Spec.
FLC160808NLCL
(0603)
1.80
(0.071)
1.22
(0.048)
1.07
(0.042)
0.38
(0.015)
0.90
(0.035)
0.31
(0.012)
0.93
(0.037)
1.02
(0.040)
0.64
(0.025)
0.64
(0.025)
FLCˍˍNLCL SERIES
FLC201212NLCL
(0805)
2.35
(0.093)
1.78
(0.070)
1.60
(0.063)
0.51
(0.020)
1.27
(0.050)
0.51
(0.020)
1.02
(0.040)
1.78
(0.070)
1.02
(0.040)
0.76
(0.030)
FLCˍˍNLCL SERIES
FLC252018NLCL
(1008)
2.92
(0.115)
2.79
(0.110)
2.23
(0.088)
0.51
(0.020)
2.03
(0.080)
0.51
(0.020)
1.52
(0.060)
2.54
(0.100)
1.02
(0.040)
1.27
(0.050)
FLCˍˍNLCL SERIES
  1. Other sizes are available upon request.
  2. All the data listed in this catalogue are for reference only; King Core reserves
    the right to alter or revise the specifications without prior notification.
